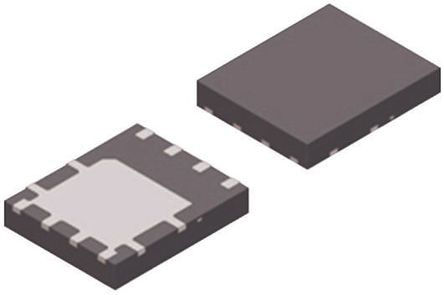

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STL90N6F7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerSMD-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0046 Ω
Power Dissipation	94 W
Threshold Voltage	4 V
Input Capacitance	1600 pF
Drain to Source Voltage (Vds)	60 V
Rise Time	17.6 ns
Input Capacitance (Ciss)	1600pF @25V(Vds)
Fall Time	7.8 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	4.8W (Ta), 94W (Tc)
	Show
Size-Length	5.4 mm
Size-Width	6.35 mm
Size-Height	0.95 mm
Operating Temperature	175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99
