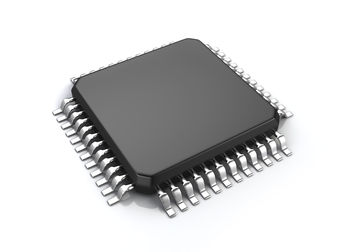

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM32F030C6T6 is a general purpose ARM Cortex-M0 32bit microcontroller in 48 pin LQFP package. This microcontroller incorporates high performance RISC core with 48MHz operating frequency, high speed embedded memories, extensive range of enhanced peripherals and I/Os. The STM32F030C6T6 features standard communication interfaces, 12bit ADC, general purpose 16bit timers and advanced control PWM timer. A comprehensive set of power saving modes allows design of low power applications.
Operating voltage range from 2.4V to 3.6V
32Kbytes of flash memory
4Kbytes of SRAM with HW parity
CRC calculation unit
39 fast I/O ports
5 channel DMA controller
Calendar RTC with alarm and periodic wakeup from stop/standby
One 12bit, 1.0µs ADC (up to 12 channels)
Ambient operating temperature range from -40°C to 85°C
Features one I2C, one SPI and one USART interface

Show

STM32F030C6T6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Frequency	48 MHz
Operating Voltage	2.4V ~ 3.6V
Number of Positions	48 Position
Clock Speed	48 MHz
RAM Memory Size	4 KB
Number of Bits	32 Bit
Power Dissipation	364 mW
FLASH Memory Size	32 KB
Number of ADCs	1 ADC
Number of Inputs and Outputs	39 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	364 mW
Supply Voltage	2.4V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.4 V
	Show
Size-Length	7.2 mm
Size-Width	7.2 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	3A991A2
