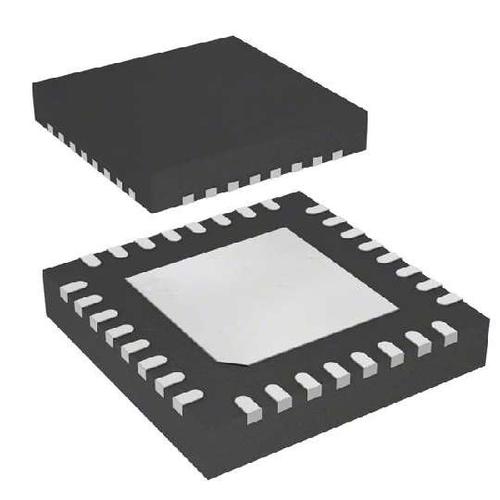

Image is for your reference only,please check specifications for details
- STM32F301K6U6 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC6373503
-
Category:Microcontroller, MCU IC
-
Package:UFQFPN-32
-
Datasheet:Datasheet 3D Model
-
Description:Analog and DSP with FPU ARM Cortex-M4 MCU with 64 Kbytes Flash, 72MHz CPU, CCM, 12Bit ADC 5MSPS, Comparator, Op-Amp
-
Stock Locations:
-
Availability:205 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.56
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The STM32F301K6U6 is a 32-bit ARM®Cortex® -M4 Microcontroller Unit offers digital signal processing (DSP) and floating point unit (FPU). The microcontroller unit offers a fast 12-bit ADC, three comparators and an operational amplifier, up to 18 capacitive sensing channels, one DAC channel, a low-power RTC and one general-purpose 32-bit timer and up to three general-purpose 16-bit timers and one timer to drive the DAC. It also features standard and advanced communication interfaces three I²Cs and up to three USARTs, up to two SPIs with multiplexed full-duplex I²S and an infrared transmitter. It incorporates high-speed embedded memories (32kB of flash memory, 16kB of SRAM) and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
- Reset and power management - Power-ON/power DOWN reset (POR/PDR)
- Programmable voltage detector
- Low-power - Sleep, stop and standby
- VBAT supply for RTC and backup registers
- Interconnect matrix
- Calendar RTC with alarm, periodic wakeup from stop/standby
- Serial wire debug (SWD), JTAG
- 96-bit Unique ID
- ESD sensitive device, take proper precaution while handling the device.
STM32F301K6U6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 32 Pin |
| Case/Package | UFQFPN-32 |
| Frequency | 72 MHz |
| Number of Positions | 32 Position |
| Clock Speed | 72.0 MHz |
| RAM Memory Size | 16 KB |
| Number of Bits | 32 Bit |
| Power Dissipation | 540 mW |
| FLASH Memory Size | 32 KB |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 24 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 540 mW |
| Number of DACs | 1 DAC |
| Supply Voltage | 2V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
