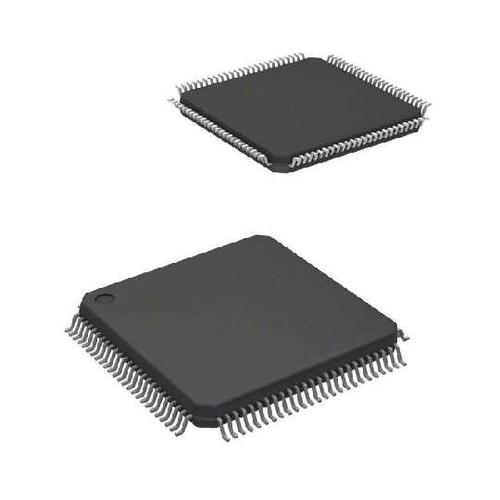

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM32F407VGT6TR is based on the high-performance ARM®Cortex™-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit which enhances application security. This MCU incorporates high-speed embedded memories, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.
LCD parallel interface, 8080/6800 modes
Sleep, Stop and Standby modes
2×12-bit D/A converters
16-stream DMA controller with FIFOs and burst support
True random number generator
CRC calculation unit
I²C, USART, SPI, CAN, and SDIO interfaces
USB 2.0 full-speed device/host/OTG controller with on-chip PHY

Show

STM32F407VGT6TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Frequency	168 MHz
Supply Voltage (DC)	1.80V (min)
Number of Positions	100 Position
Clock Speed	168 MHz
RAM Memory Size	192 KB
Number of Bits	32 Bit
Power Dissipation	465 mW
FLASH Memory Size	1024 KB
Number of ADCs	3 ADC
Number of Inputs and Outputs	82 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	465 mW
Number of DACs	1 DAC
Supply Voltage	1.8V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	ECL99
