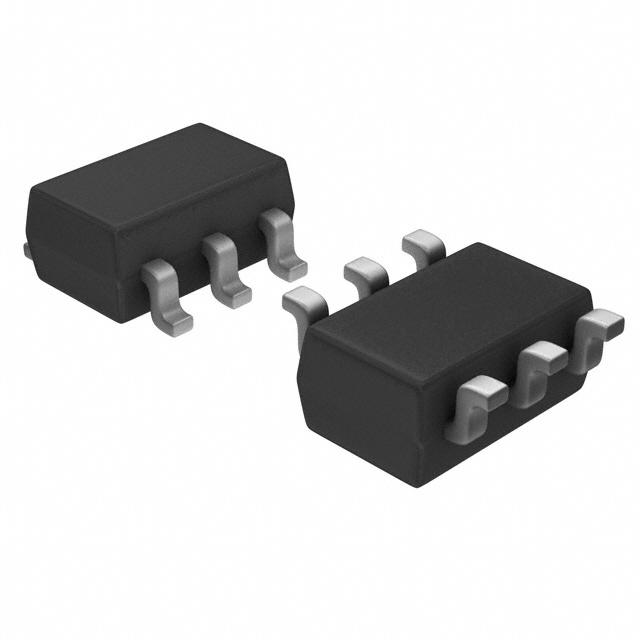

Image is for your reference only,please check specifications for details
- STM6719TWWB6F - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC27478903
-
Category:Power Monitor
-
Package:SOT-23-6
-
Datasheet:Datasheet 3D Model
-
Description:Супервизор питания процессора, пороги 3.075В/1.665В, диапазон питания 0.8В до 5.5В, 6 выводов, корпус SOT-23, лента и катушка
-
Stock Locations:
-
Availability:1,405 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.54
Updated at 28/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Используйте микропроцессорную схему контроля STM6719TWWB6F от STMicroelectronics для защиты вашей схемы в аварийной ситуации. Данное устройство имеет максимальную рассеиваемую мощность 675 мВт. Данное изделие поставляется в упаковке типа лента и катушка для эффективного монтажа компонентов. Минимальная рабочая температура составляет -40 °C, максимальная — 85 °C. Минимальное рабочее напряжение питания устройства — 0,8 В, максимальное — 5,5 В. Типичное пороговое напряжение сброса составляет 3,075|1,665 В, с минимальным значением 3|1,62 В и максимальным 3,15|1,71 В.
STM6719TWWB6F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-23-6 |
| Supply Voltage (DC) | 5.50V (max) |
| Output Voltage | 5.8 V |
| Output Current | 20 mA |
| Supply Current | 0.035 mA |
| Power Dissipation | 675 mW |
| Threshold Voltage | 1.665V,3.075V,Adjustable |
| Reset Threshold Voltage (Min) | 3V, 1.62V |
| Reset Threshold Voltage (Max) | 3.15V, 1.71V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 675 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 0.8 V |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
