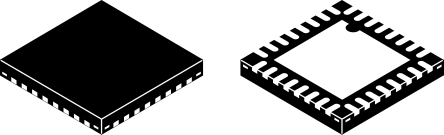

- STM8S103K3U6 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC14303838
-
Category:Microcontroller, MCU IC
-
Package:UFQFPN-32
-
Datasheet:Datasheet 3D Model
-
Description:MCU 8Bit STM8S STM8 CISC 8KB Flash 3.3V/5V 32Pin VFQFPN EP Tray
-
Stock Locations:
-
Availability:5 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.38
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Core * 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline * Extended instruction set * Memories * Program memory: 8 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles * Data memory: 640 bytes true data EEPROM; endurance 300 kcycles * RAM: 1 Kbytes * Clock, reset and supply management * 2.95 to 5.5 V operating voltage * Flexible clock control, 4 master clock sourcesLow power crystal resonator oscillatorExternal clock inputInternal, user-trimmable 16 MHz RCInternal low-power 128 kHz RC * Clock security system with clock monitor * Power management:Low-power modes (wait, active-halt, halt)Switch-off peripheral clocks individually * Permanently active, low consumption power-on and power-down reset * Interrupt management * Nested interrupt controller with 32 interrupts * Up to 27 external interrupts on 6 vectors * Timers * Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization * 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM) * 8-bit basic timer with 8-bit prescaler * Auto wake-up timer * Window watchdog and independent watchdog timers * Communication interfaces * UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode * SPI interface up to 8 Mbit/s * I2C interface up to 400 kbit/s * Analog to digital converter (ADC) * 10-bit, ±1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog * I/Os * Up to 28 I/Os on a 32-pin package including 21 high sink outputs * Highly robust I/O design, immune against current injection * Unique ID * 96-bit unique key for each device
STM8S103K3U6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | UFQFPN-32 |
| Frequency | 16 MHz |
| Number of Positions | 32 Position |
| RAM Memory Size | 1 KB |
| Power Dissipation | 526 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 28 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 526 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.95 V |
| Show | |
| Size-Length | 5.15 mm |
| Size-Width | 5.15 mm |
| Size-Height | 0.55 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
