Description

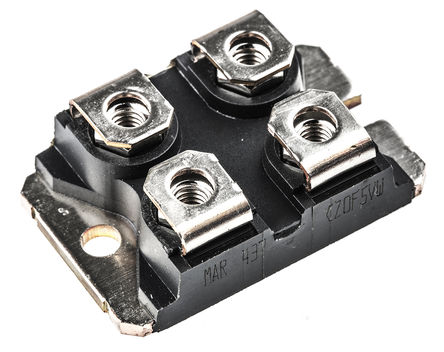

The STPS12045TV is a Power Schottky Rectifier features very small conduction losses, negligible switching losses, extremely fast switching and low thermal resistance. The dual power Schottky rectifier is suitable for high frequency DC to DC converters. This device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
150°C Maximum operating junction temperature

Show

STPS12045TV Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	4 Pin
Case/Package	ISOTOP
Voltage Rating (DC)	45.0 V
Current Rating	120 A
Forward Voltage	670mV @60A
Thermal Resistance	1 ℃/W
Forward Current	120 A
Max Forward Surge Current (Ifsm)	900 A
Maximum Forward Voltage (Max)	670 mV
Forward Current (Max)	120 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
Junction Temperature (Max)	150 ℃
	Show
Size-Length	38.2 mm
Size-Width	25.5 mm
Size-Height	9.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
