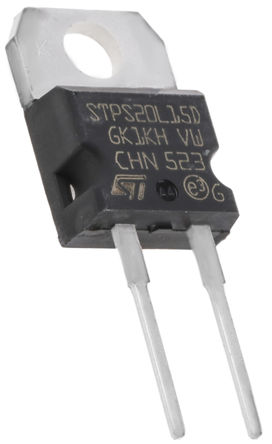

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STPS20L15D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	15.0 V
Current Rating	20.0 A
Output Current	≤20.0 A
Forward Voltage	410mV @19A
Polarity	Standard
Thermal Resistance	1.6℃/W (RθJC)
Forward Current	20 A
Max Forward Surge Current (Ifsm)	310 A
Maximum Forward Voltage (Max)	410 mV
Forward Current (Max)	20 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	125℃ (Max)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-65℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
