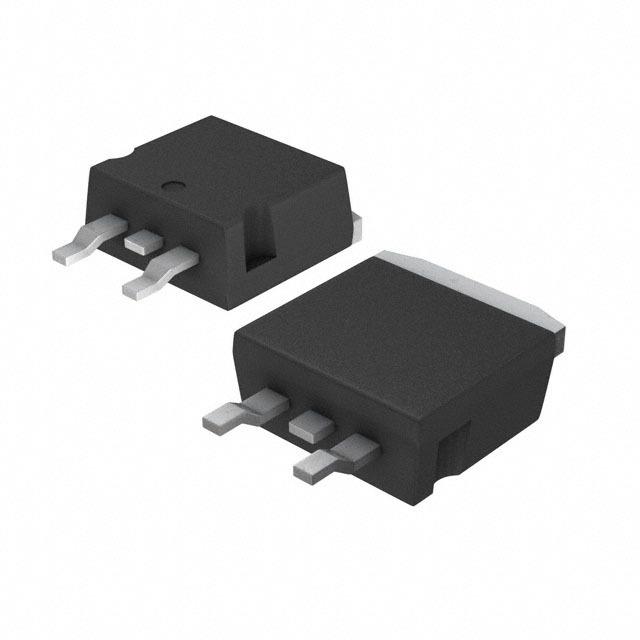

Image is for your reference only,please check specifications for details
Updated at 09/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Schottky 15 V 20A Surface Mount D2PAK
STPS20L15G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Voltage Rating (DC) | 15.0 V |
| Current Rating | 20.0 A |
| Output Current | ≤20.0 A |
| Forward Voltage | 410mV @19A |
| Polarity | Standard |
| Maximum Forward Voltage (Max) | 410mV @19A |
| Forward Current (Max) | 20 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | 125℃ (Max) |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
