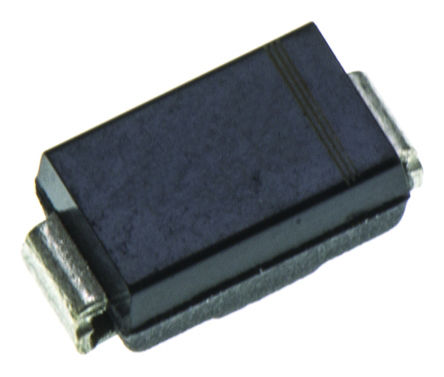

STPS2H100AY Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Number of Positions	2 Position
Forward Voltage	790mV @2A
Thermal Resistance	30℃/W (RθJL)
Forward Current	2 A
Max Forward Surge Current (Ifsm)	75 A
Maximum Forward Voltage (Max)	790 mV
Forward Current (Max)	2 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 175℃
	Show
Size-Length	4.6 mm
Size-Width	2.9 mm
Size-Height	2.45 mm
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
