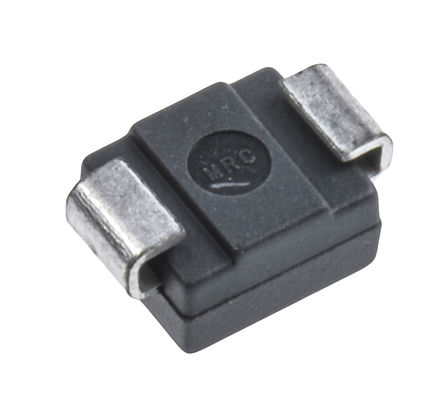

Image is for your reference only,please check specifications for details

Updated at 30/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STPS3150U is a power Schottky Rectifier features negligible switching losses, low forward voltage drop for higher efficiency and extended battery life and low thermal resistance. Suitable for switch mode power supplies on up to 24V rails and high frequency converters. Ideal for applications where low drop forward voltage is required to reduce power dissipation.
20°C/W Junction-to-lead thermal resistances
ECOPACK®2 compliant component

Show

STPS3150U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Voltage Rating (DC)	150 V
Current Rating	3.00 A
Output Current	≤3.00 A
Load Current	3 A
Number of Positions	2 Position
Forward Voltage	820mV @3A
Polarity	Standard
Thermal Resistance	15 ℃/W
Forward Current	3 A
Max Forward Surge Current (Ifsm)	100 A
Maximum Forward Voltage (Max)	820 mV
Forward Current (Max)	3 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
	Show
Size-Length	4.6 mm
Size-Width	3.95 mm
Size-Height	2.45 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
