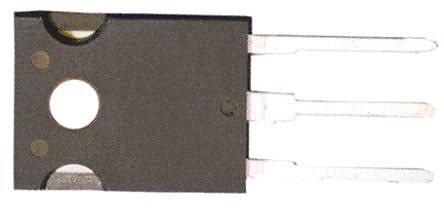

Image is for your reference only,please check specifications for details

STTH100W04CW - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC17213840
Category:
Diode Array, TVS Diode Array
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
Fast / Ultrafast Diode, 400V, 100A, Dual Common Cathode, 1.75V, 50ns, 350A
Stock Locations:
Availability:
253 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.53

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH100W04CW is a Turbo-2 ultra-fast High-voltage Rectifier suitable for use in DC/DC and DC/AC converters in secondary stage of MIG/MMA/TIG welding machine. It offers high power integration for all welding machines and industrial applications.
Ultra-fast switching
Low reverse recovery current
Low thermal resistance
Reduces switching losses
Ribbon bonding for more robustness
ECOPACK®2 compliant component

Show

STTH100W04CW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Forward Voltage	1.45V @50A
Reverse recovery time	50 ns
Forward Current	100 A
Max Forward Surge Current (Ifsm)	350 A
Maximum Forward Voltage (Max)	1.75 V
Forward Current (Max)	100 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
