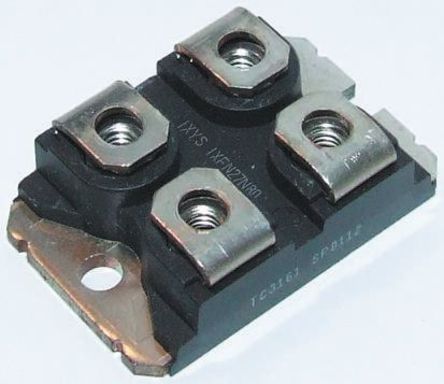

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STTH20003TV1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	ISOTOP-4
Voltage Rating (DC)	300 V
Current Rating	200 A
Forward Voltage	1.2V @100A
Reverse recovery time	90 ns
Forward Current	200 A
Max Forward Surge Current (Ifsm)	100 A
Maximum Forward Voltage (Max)	1.2 V
Forward Current (Max)	100 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	38.2 mm
Size-Width	25.5 mm
Size-Height	9.1 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
