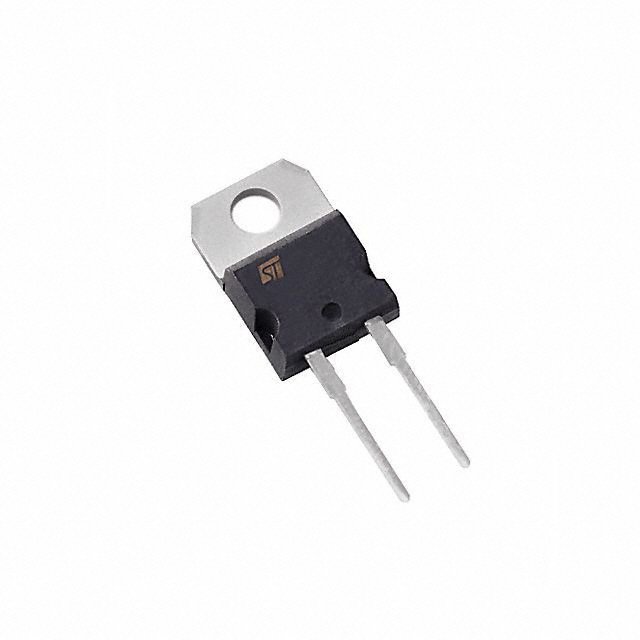

Image is for your reference only,please check specifications for details
- STTH30R06D - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC160165403
-
Category:TVS Diode
-
Package:TO-220-2
-
Datasheet:Datasheet 3D Model
-
Description:Импульсный диод, 600 В, 30 А, 2-выводной (2+таб), TO-220AC, в трубке
-
Stock Locations:
-
Availability:273 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 09/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ОПИСАНИЕ
- Диод STTH30R06, выполненный по технологии ST Turbo 2 с напряжением 600 В, специально разработан для применения в импульсных источниках питания и промышленных устройствах, а также для выпрямления и в качестве повышающего диода в режиме прерывистого тока в схемах коррекции коэффициента мощности (PFC).
- ОСОБЕННОСТИ И ПРЕИМУЩЕСТВА
- ■ Сверхбыстрое переключение
- ■ Низкий обратный ток
- ■ Низкое тепловое сопротивление
- ■ Снижение потерь при переключении и в проводящем состоянии
STTH30R06D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | TO-220-2 |
| Voltage Rating (DC) | 600 V |
| Current Rating | 30.0 A |
| Output Current | ≤30.0 A |
| Forward Voltage | 1.85V @30A |
| Polarity | Standard |
| Reverse recovery time | 70 ns |
| Maximum Forward Voltage (Max) | 1.85V @30A |
| Forward Current (Max) | 30 A |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | 175℃ (Max) |
| Show | |
| Size-Length | 10.4 mm |
| Size-Width | 4.6 mm |
| Size-Height | 9.3 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
