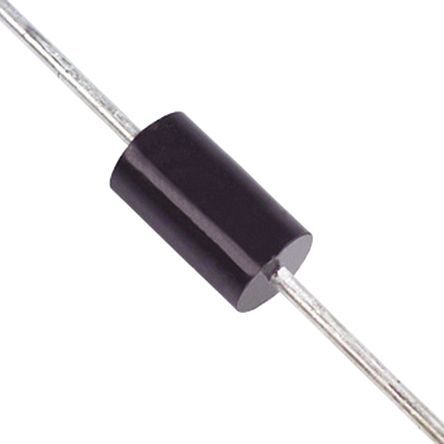

Image is for your reference only,please check specifications for details

STTH3L06 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC40876078
Category:
TVS Diode
Package:
DO-201AD
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH3L06 Fast / Ultrafast Diode, 600V, 3A, Single, 1.3V, 60ns, 70A
Stock Locations:
Availability:
397 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STTH3L06 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	600 V
Current Rating	3.00 A
Output Current	≤3.00 A
Forward Voltage	1.3 V
Polarity	Standard
Thermal Resistance	75℃/W (RθJA)
Reverse recovery time	60 ns
Forward Current	3 A
Max Forward Surge Current (Ifsm)	70 A
Maximum Forward Voltage (Max)	1.3 V
Forward Current (Max)	3 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
	Show
Size-Length	9.5 mm
Size-Width	5.3 mm
Size-Height	5.3 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
