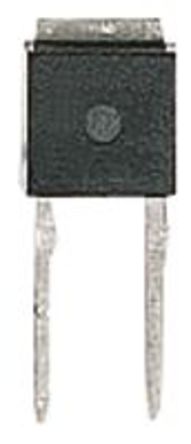

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH6006W is a Turbo-2 ultra-fast High-voltage Rectifier especially suited for use in switching power supplies. The VF/Trr trade-off has been specially established to increase the performance in welding applications.
Ultra-fast switching
Low reverse current
Low thermal resistance
Reduces conduction and switching losses

Show

STTH6006W Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-247-2
Forward Voltage	1.85 V
Thermal Resistance	0.75 ℃/W
Reverse recovery time	60 ns
Forward Current	60 A
Max Forward Surge Current (Ifsm)	400 A
Maximum Forward Voltage (Max)	1.85 V
Forward Current (Max)	60 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/01/15
