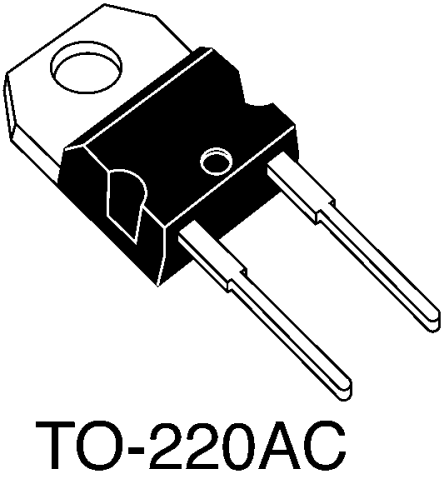

Image is for your reference only,please check specifications for details

STTH8R06DIRG - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC15733430
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH8R06DIRG Fast / Ultrafast Diode, 600V, 8A, Single, 2.9V, 45ns, 80A
Stock Locations:
Availability:
231 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.98

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH8R06DIRG is a Turbo-2 ultra-fast High-voltage Rectifier especially suited as boost diode in continuous mode power factor corrections and hard switching conditions.
Low reverse recovery current
Low thermal resistance
Reduces switching losses

Show

STTH8R06DIRG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	600 V
Current Rating	8.00 A
Output Current	≤8.00 A
Forward Voltage	2.9 V
Polarity	Standard
Thermal Resistance	3.8 ℃/W
Reverse recovery time	45 ns
Forward Current	8 A
Max Forward Surge Current (Ifsm)	80 A
Maximum Forward Voltage (Max)	2.9V @8A
Forward Current (Max)	8 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
