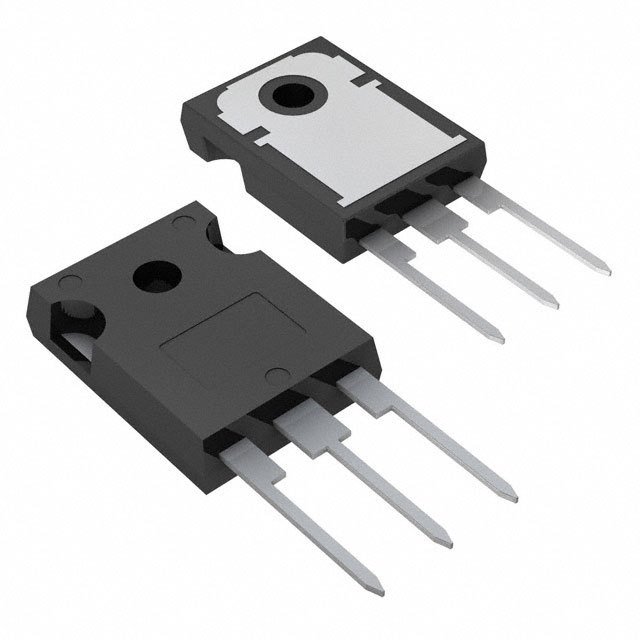

STW150NF55 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC150735926
Category:
MOSFET, MOSFET Transistor
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
N-CHANNEL 55V - 0.005Ω -120A D2PAK/TO-220/TO-247 STRIPFET II POWER MOSFET
Stock Locations:
Availability:
274 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 03/08/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STW150NF55 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-247-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	6 mΩ
Power Dissipation	300 W
Drain to Source Voltage (Vds)	55 V
Breakdown Voltage (Drain to Source)	55 V
Rise Time	180 ns
Input Capacitance (Ciss)	4400pF @25V(Vds)
Fall Time	80 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	300W (Tc)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
