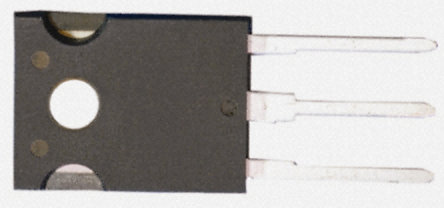

STW21NM60ND - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC11321600
Category:
MOSFET, MOSFET Transistor
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
N-channel 600V, 0.17Ω typ., 17A, FDmesh(TM) II Power MOSFET (whit fast diode) in TO-247 package
Stock Locations:
Availability:
689 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.93

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STW21NM60ND is a FDmesh™ II N-channel Power MOSFET features low input capacitance and gate charge. This FDmesh™ II Power MOSFET with intrinsic fast-recovery body diode are produced using the second generation of MDmesh™ technology. Utilizing a new strip-layout vertical structure, this revolutionary device features extremely low ON-resistance and superior switching performance. It is ideal for bridge topologies and ZVS phase-shift converters.
Worldwide best RDS (ON) area amongst the fast recovery diode devices
100% avalanche tested
Extremely high dV/dt and avalanche capabilities

Show

STW21NM60ND Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.17 Ω
Polarity	N-Channel
Power Dissipation	140 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	600 V
Rise Time	16 ns
Input Capacitance (Ciss)	1800pF @50V(Vds)
Input Power (Max)	140 W
Fall Time	48 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	140W (Tc)
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
