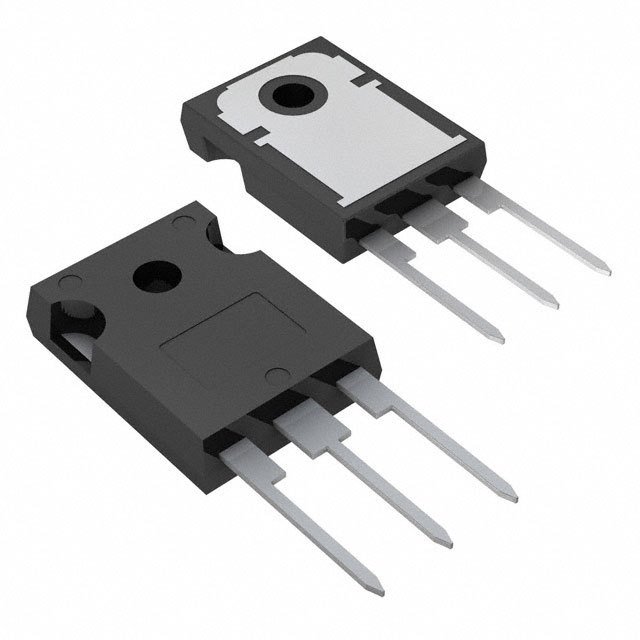

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STW40N95K5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.11 Ω
Polarity	N-CH
Power Dissipation	450 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	950 V
Continuous Drain Current (Ids)	38A
Rise Time	51 ns
Input Capacitance (Ciss)	3300pF @100V(Vds)
Fall Time	10 ns
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	450W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS
Lead-Free Status
