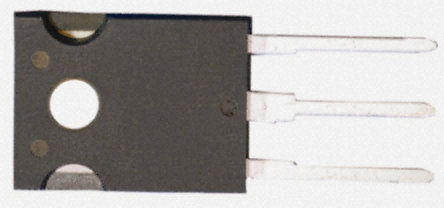

STW9NK70Z - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC96145270
Category:
MOSFET, MOSFET Transistor
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
N-CHANNEL 700V 1Ω 7.5A TO-220/TO-220FP/D2PAK/I2PAK/TO-247 ZENER-PROTECTED SUPERMESH POWER MOSFET
Stock Locations:
Availability:
313 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.98

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs in cluding revolutionary MDmesh™ products.
■ TYPICAL RDS(on) = 1.0 Ω
■ EXTREMELY HIGH dv/dt CAPABILITY
■ IMPROVED ESD CAPABILITY
■ 100% AVALANCHE RATED
■ GATE CHARGE MINIMIZED
■ VERY LOW INTRINSIC CAPACITANCES
■ VERY GOOD MANUFACTURING REPEATIBILITY
APPLICATIONS
■ HIGH CURRENT, HIGH SPEED SWITCHING
■ IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC

Show

STW9NK70Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	700 V
Current Rating	7.50 A
Drain to Source Resistance (on) (Rds)	1.2 Ω
Polarity	N-Channel
Power Dissipation	156 W
Threshold Voltage	3.75 V
Drain to Source Voltage (Vds)	700 V
Continuous Drain Current (Ids)	7.50 A
Rise Time	17 ns
Input Capacitance (Ciss)	1370pF @25V(Vds)
Input Power (Max)	156 W
Fall Time	13 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	156W (Tc)
	Show
Size-Length	15.9 mm
Size-Width	20.3 mm
Size-Height	5.3 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
