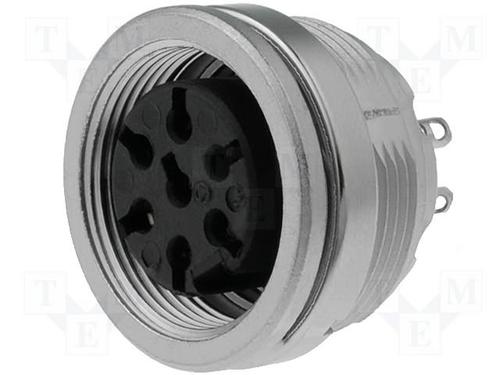

Image is for your reference only,please check specifications for details
Updated at 29/07/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Female Receptacle Cable Connector, Rated Voltage 300 V, Rated Current 5 A
- ** Materials:** Housing — Die-cast, nickel-plated; Dielectric — Thermoplastic; Contact Plating — Silver or gold. ** Current Rating:** 5 A, except 3 A for 12 and 14 contact. ** Voltage Rating:** 300 V, except 150 V for 5S, 7 DIN, 8, 12 and 14 contact. Cable connector length — approximately 2.65". Allied lists solder termination types. Crimp type is available by special order. ** Cable Outlet:** 6 mm. ** Temperature Rating:** –40 to +85°C.
- ** Maximum Panel Thickness:** 5 mm (0.197").
- * UL File Number: E63093, IEC529, DIN40-450; Rated IP40
- * Internal Metal Strain Relief with Half Shell Construction and Snap-In Latching
- * Complete EMI Shielding in Fully Mated and Locked Position
- * Metal Threaded Coupling ACC to IEC130-9
T 3478 000 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Panel, Solder |
| Number of Pins | 7 Pin |
| Number of Contacts | 7 Contact |
| Gender | Female |
| Contact Plating | Silver |
| Voltage Rating (DC) | 300 V |
| Operating Voltage | 300 V |
| Current Rating | 5 A |
| Number of Positions | 7 Position |
| Contact Resistance | 5.00 mΩ |
| Current Rating (Max) | 5 A |
| Voltage Rating | 300 V |
| Show | |
| Contact Material | Brass |
| Dielectric Material | Thermoplastic |
| Insulation Material | Plastic |
| Operating Temperature | -40℃ ~ 100℃ |
| Housing Material | Thermoplastic |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
