T 3636 001 Amphenol - Circular Connector, Connector Circular

Image is for your reference only,please check specifications for details

Updated at 06/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Female Cable Connectors, 20-26 AWG Wire Size
** Materials:** Housing — Die-cast, nickel-plated; Dielectric — Thermoplastic; Contact Plating — Silver or gold. ** Current Rating:** 5 A, except 3 A for 12 and 14 contact. ** Voltage Rating:** 300 V, except 150 V for 5S, 7 DIN, 8, 12 and 14 contact. Cable connector length — approximately 2.65". Allied lists solder termination types. Crimp type is available by special order. ** Cable Outlet:** 6 mm. ** Temperature Rating:** –40 to +85°C.
Cable connector length is approximately 2.65 inches.
* UL File Number: E63093, IEC529, DIN40-450; Rated IP40
* Internal Metal Strain Relief with Half Shell Construction and Snap-In Latching
* Complete EMI Shielding in Fully Mated and Locked Position
* Metal Threaded Coupling ACC to IEC130-9

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder

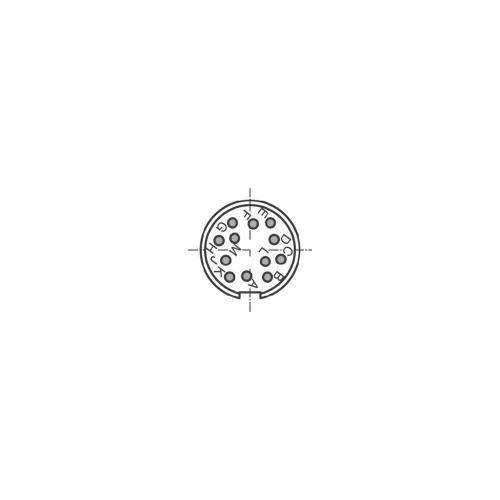

Number of Contacts	12 Contact
Gender	Female
Wire Gauge	24.0 AWG
Contact Plating	Silver
Current Rating	3 A
Insulation Resistance	10000 MΩ
Number of Positions	12 Position
Current Rating (Max)	3 A
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	150 VAC
Voltage Rating	150 V
Maximum Contact Resistance (Max)	5 mΩ
	Show
Insulation Material	Plastic
Operating Temperature	-40℃ ~ 100℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
