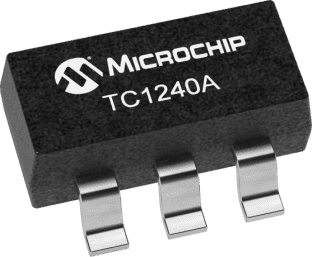

Image is for your reference only,please check specifications for details

TC1240AECHTR - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC13332644
Category:
DC to DC Converter
Package:
SOT-23-6
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP TC1240AECHTR DC-DC Adjustable Charge Pump Voltage Converter, 2.5V to 5.5V in, 5V to 11V/20mA out, SOT-23A-6
Stock Locations:
Availability:
6 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.96

Updated at 07/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC1240AECHTR is a doubling CMOS charge Pump Voltage Converter for battery powered devices, PDAs and portable data loggers. The TC1240A doubles an input voltage that can range from +2.5 to +5.5V. Conversion efficiency is typically >99%. Internal oscillator frequency is 160kHz for both devices. The TC1240A have an active-high shutdown that limits the current consumption of the devices to less than 1µA. External component requirement is only two capacitors for standard voltage doubler applications. All other circuitry (including control, oscillator and power MOSFETs) are integrated on-chip.
>99% Typical voltage conversion efficiency
Voltage doubling
Low output resistance (12R typical)
Only two external capacitors required
Consumes 550µA (typical) in active mode
Power-saving shutdown mode (1µA maximum)
Shutdown input fully compatible with 1.8V logic systems

Show

TC1240AECHTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Number of Outputs	1 Output
Input Voltage (DC)	2.50V (min)
Output Voltage	5V ~ 11V
Output Current	20 mA
Supply Current	0.55 mA
Number of Positions	6 Position
Power Dissipation	0.6 W
Power Consumption	600 mW
Quiescent Current	180 µA
Output Power	600 mW
Switching Frequency	80 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	11 V
Output Voltage (Min)	5 V
Output Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	600 mW
Supply Voltage	5V ~ 11V
Input Voltage	2.5V ~ 5.5V
	Show
Size-Length	3.1 mm
Size-Width	1.8 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8542390001
ECCN Code	EAR99
