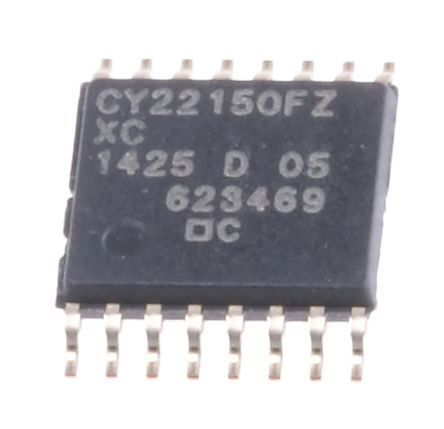

Image is for your reference only,please check specifications for details

CY22150FZXC - Cypress Semiconductor
Manufacturer:
Cypress Semiconductor
ManyChip's Part#:
MC16871142
Category:
Clock Chip, Timing IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
CYPRESS SEMICONDUCTOR CY22150FZXC Clock Generator IC, Flash & Serially Programmable, 200MHz, 6Outputs, 3.135V to 3.465V, TSSOP-16
Stock Locations:
Availability:
13 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.01

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

One-PLL General-Purpose Flash-Programmable and 2-Wire Serially Programmable Clock Generator
Features
■Integrated phase-locked loop (PLL)
■Commercial and industrial operation
■Flash programmable
■Field programmable
■Two-wire serial programming interface
■Low skew, low jitter, high accuracy outputs
■3.3V operation with 2.5V output option
■16-pin TSSOP

Show

CY22150FZXC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Frequency	200 MHz
Supply Voltage (DC)	3.13V (min)
Number of Outputs	6 Output
Supply Current	45 mA
Number of Circuits	1 Circuit
Power Dissipation	0.45 W
Duty Cycle	50 %
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	450 mW
Supply Voltage	2.375V ~ 3.465V
Supply Voltage (Max)	3.465 V
Supply Voltage (Min)	3.135 V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	0.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
