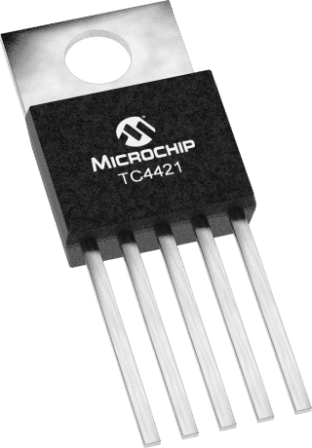

Image is for your reference only,please check specifications for details

TC4421CAT - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC18244711
Category:
FET Driver
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
Microchip TC4421CAT, MOSFET Power Driver 9A, 4.5 → 18V, Inverting, 5Pin TO-220
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.2

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC4421CAT is an inverting high-speed MOSFET Driver capable of driving large MOSFETs and IGBTs. This device is essentially immune to any form of upset, except direct over-voltage or over-dissipation. It cannot be latched under any conditions within its power and voltage ratings. This part is not subject to damage or improper operation when up to 5V of ground bounce is present on their ground terminals. It can accept, without damage or logic upset, more than 1A inductive current of either polarity being forced back into their outputs. In addition, all terminals are fully protected against up to 4kV of electrostatic discharge. The TC4421 inputs may be driven directly from either TTL or CMOS. In addition, 300mV of hysteresis is built into the input, providing noise immunity and allowing the device to be driven from slowly rising or falling waveforms.
2A Maximum high continuous output current
Fast rise and fall times
Short propagation delays - 30ns Typical
1.4R Typical low output impedance
Latch-up protected - Will withstand 1.5A output reverse current
Input will withstand negative inputs up to 5V
Pin-compatible with the TC4420/TC4429 6A MOSFET driver

Show

TC4421CAT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Supply Voltage (DC)	4.50V (min)
Rise/Fall Time	60 ns
Number of Outputs	1 Output
Output Voltage	18.0 V
Output Current	375 mA
Supply Current	1.50 mA
Number of Positions	5 Position
Power Dissipation	1.6 W
Rise Time	75 ns
Fall Time	75 ns
Fall Time (Max)	75 ns
Fall Time (Max)	75 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1600 mW
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	10.67 mm
Size-Width	4.83 mm
Size-Height	9.02 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
