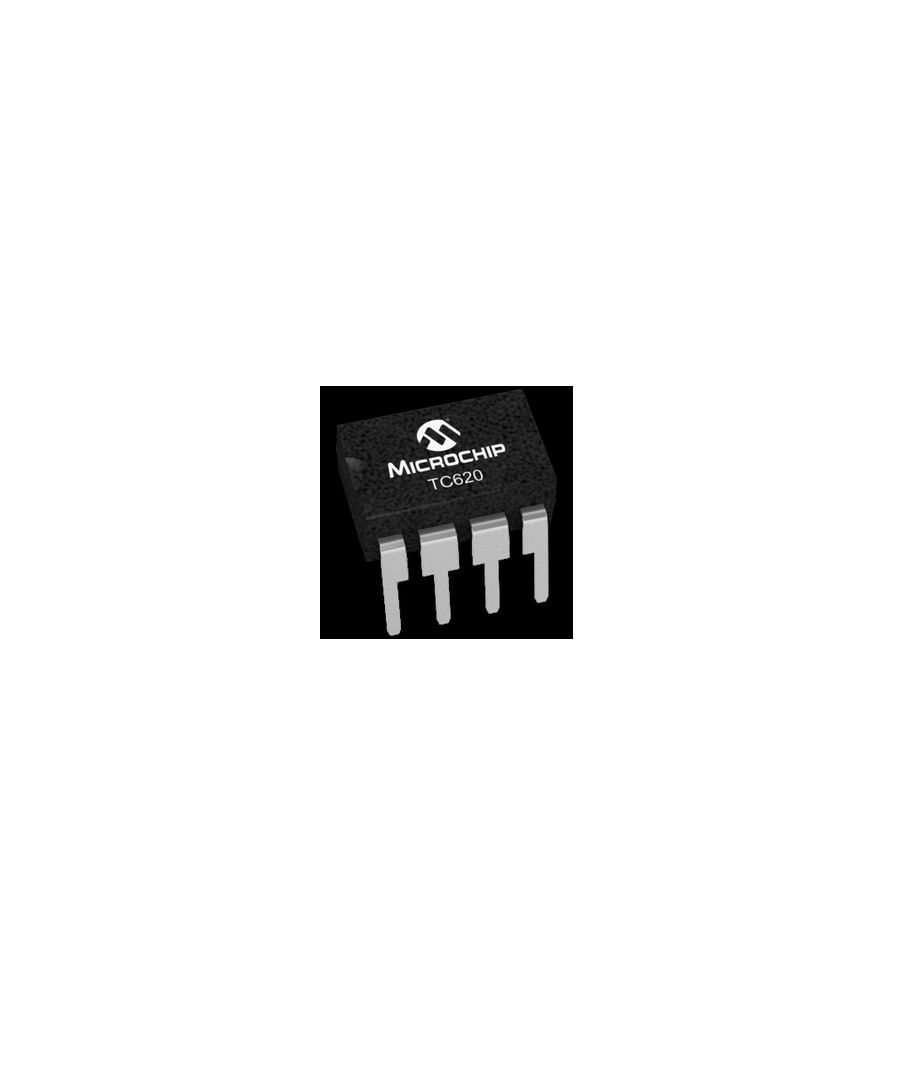

Image is for your reference only,please check specifications for details

TC620CEOA - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC14296759
Category:
Temperature Sensor
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP TC620CEOA Temperature Sensor IC, Logic, ± 1℃, -40℃, +85℃, SOIC, 8Pins
Stock Locations:
Availability:
1,255 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.81

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**TC620/621 Dual Trip Point Temperature Sensors**
The TC620/621 series of dual trip point temperature sensors both have programmable hysteresis and temperature setpoints for thermal management within temperature regulators, CPUs, consumer equipment and power supply over temperature detection designs. The TC620 has an on-chip temperature sensor whilst the TC621 measures remote temperatures, requiring connection to an NTC thermistor.

Show

TC620CEOA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	4.50V (min)
Output Current	1 mA
Supply Current	270 µA
Power Dissipation	470 mW
Output Current (Max)	1 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	470 mW
Accuracy	±3 ℃
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	5 mm
Size-Width	3.99 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8542390001
ECCN Code	EAR99
