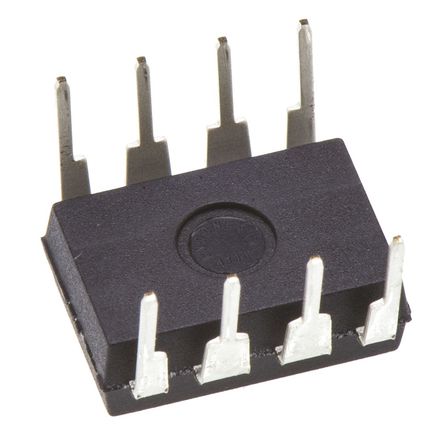

Image is for your reference only,please check specifications for details

TCA0372DP1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC6890104
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR TCA0372DP1G Operational Amplifier, Dual, 2 Amplifier, 1.4MHz, 1.4V/µs, ± 15V, DIP, 8Pins
Stock Locations:
Availability:
150 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.91

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TCA0372DP1G is a monolithic circuit Dual Power Operational Amplifier for use as a power operational amplifier in a wide range of applications, including servo amplifiers and power supplies. No dead band crossover distortion provides better performance for driving coils.
1A Output current
1.3V/s Slew rate
1.1MHz Wide bandwidth
Internal thermal shutdown
Single or split supply operation
Excellent gain and phase margins
Common mode input includes ground
Pb-free device
Stresses exceeding maximum ratings may damage the device. Maximum ratings are stress ratings only. Functional operation the recommended operating conditions is not implied.

Show

TCA0372DP1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Halogen Free Status	Halogen Free
Output Current	1 A
Supply Current	5 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	90 dB
Bandwidth	1.4 MHz
Slew Rate	1.40 V/μs
Gain Bandwidth Product	1.4 MHz
Input Offset Voltage	1 mV
Input Bias Current	100 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1.4 MHz
Minimum CMRR Range	70 dB
Supply Voltage	40 V
Supply Voltage (Max)	37V ~ 44V
Supply Voltage (Min)	5 V
	Show
Size-Length	10.16 mm
Size-Width	6.6 mm
Size-Height	3.44 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
