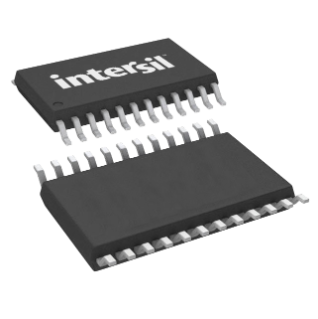

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ISL26132AVZ is a low-noise delta sigma Analog-to-digital Converter (ADC) for high resolution measurement applications. These 24-bit delta-sigma analog-to-digital converter includes a very low-noise amplifier and are available as either two or four differential multiplexer inputs. The ADC offers improved noise performance at 10Sps and 80Sps conversion rates. The high input impedance allows direct connection of sensors, such as load cell bridges to ensure the specified measurement accuracy without additional circuitry. The inputs accept signals 100mV outside the supply rails when the device is set for unity gain. The delta-sigma ADC features a third order modulator providing up to 21.6-bit noise-free performance. The device can be operated from an external clock source, crystal or the on-chip oscillator.
- Low noise amplifier with gains
- Linearity error - 0.0002%FS
- 2-channel differential input multiplexer
- On-chip temperature sensor
- Automatic clock source detection
- Simple interface to read conversions
ISL26132AVZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 24 Pin |
| Case/Package | TSSOP-24 |
| Number of Positions | 24 Position |
| Number of Bits | 24 Bit |
| Power Dissipation | 80 mW |
| Sample Rate | 80 SPS |
| Power Consumption | 50 mW |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
