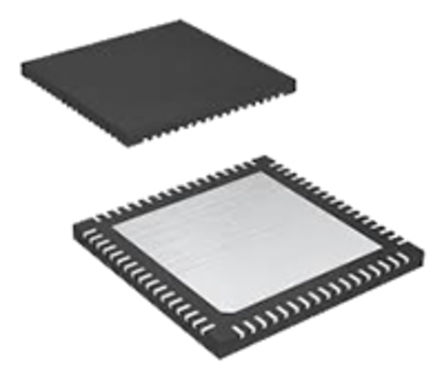

Image is for your reference only,please check specifications for details

KSZ9031MNXCA - Micrel
Manufacturer:
Micrel
ManyChip's Part#:
MC48671244
Category:
Interface IC, Interface Controller
Package:
QFN-64
Datasheet:
Datasheet 3D Model
Description:
MICREL SEMICONDUCTOR KSZ9031MNXCA Ethernet Controller, 1000Mbps, IEEE 802.3, 1.14V, 1.26V, QFN, 64Pins
Stock Locations:
Availability:
240 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.29

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KSZ9031MNXCA is a completely integrated triple-speed (10Base-T/100Base-TX/1000Base-T) Ethernet Physical-layer Transceiver for transmission and reception of data on standard CAT-5 unshielded twisted pair cable. It offers the industry-standard GMII/MII (gigabit media independent interface/media independent interface) for connection to GMII/MII MACs in gigabit Ethernet processors and switches for data transfer at 1000Mbps or 10/100Mbps. It reduces board cost and simplifies board layout by using on-chip termination resistors for the four differential pairs and by integrating an LDO controller to drive a low-cost MOSFET to supply the 1.2V core. It offers diagnostic features to facilitate system bring-up and debugging in production testing and in product deployment. Parametric NAND tree support enables fault detection between KSZ9031MNX I/Os and the board.
On-chip termination resistors for the differential pairs
Jumbo frame support up to 16KB
125MHz Reference clock output
Energy-detect power-down mode for reduced power consumption when the cable is not attached
Energy efficient Ethernet (EEE) support with low-power idle (LPI) mode and clock stoppage
Wake-on-LAN (WOL) support with robust custom-packet detection

Show

KSZ9031MNXCA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	QFN-64
Supply Voltage (DC)	1.14V (min)
Number of Positions	64 Position
Data Rate	1.00 Gbps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	1.8V, 2.5V, 3.3V
Supply Voltage (Max)	1.26 V
Supply Voltage (Min)	1.14 V
	Show
Size-Length	8 mm
Size-Width	8 mm
Size-Height	0.75 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
