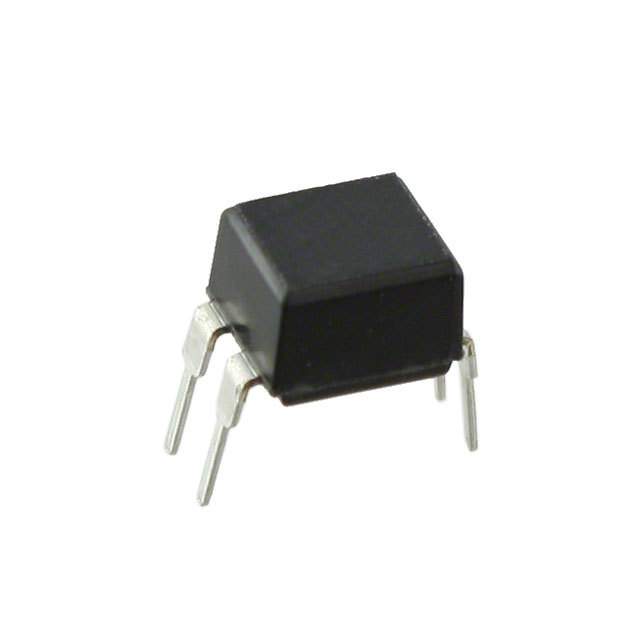

- TCET1100 - Vishay Semiconductor
-
Manufacturer:Vishay Semiconductor
-
ManyChip's Part#:MC93343467
-
Category:Optocoupler, Optoisolator
-
Package:DIP-4
-
Datasheet:Datasheet 3D Model
-
Description:VISHAY TCET1100 Optocoupler, Transistor Output, 1Channel, DIP, 4Pins, 60mA, 5kV, 50%
-
Stock Locations:
-
Availability:1,492 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.43
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * High common mode rejection * Low temperature coefficient of CTR * Reinforced isolation provides circuit protection against electrical shock (safety class II) * Isolation materials according to UL 94 V-O * Pollution degree 2 (DIN/VDE 0110/resp. IEC 60664) * Climatic classification 55/100/21 (IEC 60068 part 1) * Rated impulse voltage (transient overvoltage) VIOTM = 6 kVpeak * Isolation test voltage (partial discharge test voltage) Vpd = 1.6 kV * Rated isolation voltage (RMS includes DC) VIOWM = 600 VRMS * Rated recurring peak voltage (repetitive) VIORM = 848 Vpeak * Creepage current resistance according to VDE 0303/ IEC 60112 comparative tracking index: CTI ≥ 175 * Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC * CTR 50 % to 600 %, DIP-4
TCET1100 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | DIP-4 |
| Supply Voltage (DC) | 5.00 V |
| Voltage Rating (DC) | 5.00 V |
| Rise/Fall Time | 3µs, 4.7µs |
| Output Voltage | 70.0 V |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.25 V |
| Input Current | 60.0 mA |
| Power Dissipation | 265 mW |
| Rise Time | 3 µs |
| Isolation Voltage | 5000 Vrms |
| Forward Current | 60 mA |
| Output Voltage (Max) | 70 V |
| Input Current (Min) | 60 mA |
| Maximum Forward Voltage (Max) | 1.6 V |
| Forward Current (Max) | 60 mA |
| Fall Time | 4.7 µs |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 265 mW |
| Show | |
| Size-Length | 4.75 mm |
| Size-Width | 6.3 mm |
| Size-Height | 3.6 mm |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
