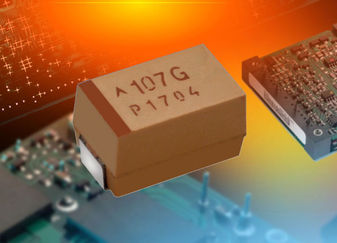

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Looking to pass low frequency signals? Well, due to a high dielectric permittivity, this TCJR475M010R0500 polymer electrolyte manufactured from AVX will be ideal for your design. It can withstand a voltage of 10 VDC. It has 2 terminals. Its leakage current is 4.7 μA. Its capacitance value is 4.7uF. This polymer electrolyte has an operating temperature range of -55 °C to 125 °C. This product is 2.05 mm long, 1.2(Max) mm tall and 1.3 mm deep.
TCJR475M010R0500 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 2012 |
| Voltage Rating (DC) | 10.0 V |
| Operating Voltage | 10 VDC |
| Capacitance | 4.7 µF |
| Equivalent Series Resistance (ESR) | 500 mΩ |
| Capacitance Tolerance | ±20 % |
| Part Family | TCJ polymer |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 10 V |
| Show | |
| Size-Length | 2.05 mm |
| Size-Width | 1.3 mm |
| Size-Height | 1.2 mm |
| Dielectric Material | Tantalum |
| Operating Temperature | -55℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 2500 |
| Life (Hours) | 2000h @105℃ |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
