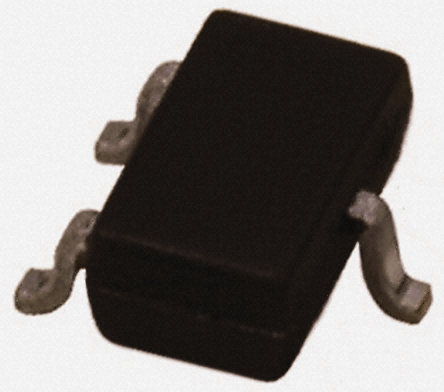

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TCM809SVLB713 is a 3-pin Microcontroller Reset Monitor with active-low push-pull RESET output. The supervisor circuit designed to monitor VDD in digital systems, providing a reset signal to the host processor, when necessary. No external components are required. The RESET output is typically driven active within 65µs of VDD falling through the reset voltage threshold. RESET is maintained active for a minimum of 140ms after VDD rises above the reset threshold. The output of the TCM809 is valid down to VDD=1V. It is optimized to reject fast transient glitches on the VDD line.
VDD transient immunity
9µA Typical low supply current

Show

TCM809SVLB713 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Supply Voltage (DC)	1.00V (min)
Supply Current	9.00 µA
Number of Positions	3 Position
Power Dissipation	0.174 W
Quiescent Current	12.0 µA
Threshold Voltage	2.93 V
Reset Threshold Voltage (Min)	2.89 V
Reset Threshold Voltage (Max)	2.96 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	174 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1 V
	Show
Size-Length	2.25 mm
Size-Width	2.4 mm
Size-Height	1.1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
