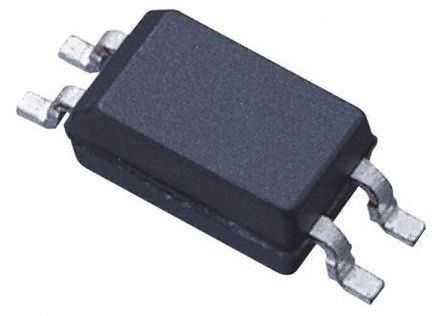

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- TCMT1108 Series Single Channel 70V 3750Vrms Phototransistor Optocoupler - SOP-4
TCMT1108 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOP-4 |
| Rise/Fall Time | 5.5µs, 7µs |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Forward Voltage | 1.6 V |
| Input Current | 60 mA |
| Power Dissipation | 0.25 W |
| Rise Time | 3 µs |
| Isolation Voltage | 3750 Vrms |
| Forward Current | 60 mA |
| Output Voltage (Max) | 70 V |
| Input Current (Min) | 60 mA |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.6 V |
| Forward Current (Max) | 60 mA |
| Fall Time | 4.7 µs |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
