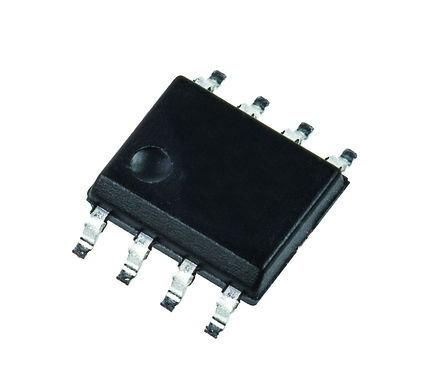

Image is for your reference only,please check specifications for details
- TDA7233D013TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC75720713
-
Category:Audio Amplifier IC
-
Package:SO-8
-
Datasheet:Datasheet 3D Model
-
Description:Amplifier IC 1Channel (Mono) Class AB 1.9W x 1 @ 8Ω 8-SO
-
Stock Locations:
-
Availability:210 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.48
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Use the TDA7233D013TR class D amplifier from STMicroelectronics for a quick boost in output volume in your application. Its maximum power dissipation is 1000 mW. It has a single input signal and a single output signal. It has a maximum load resistance of 8 Ohm. It has a 1-channel mono output. This audio amplifier has a temperature range of -40 °C to 150 °C. This device uses a single power supply. Its typical PSRR is 45 dB.
TDA7233D013TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SO-8 |
| Supply Voltage (DC) | 16.0 V |
| Supply Current | 9.00 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 1 W |
| Quiescent Current | 3.60 mA |
| Output Power | 1.9 W |
| Gain | 39 dB |
| Input Bias Current | 100 nA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1000 mW |
| Supply Voltage | 1.8V ~ 15V |
| Supply Voltage (Max) | 15 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.25 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
