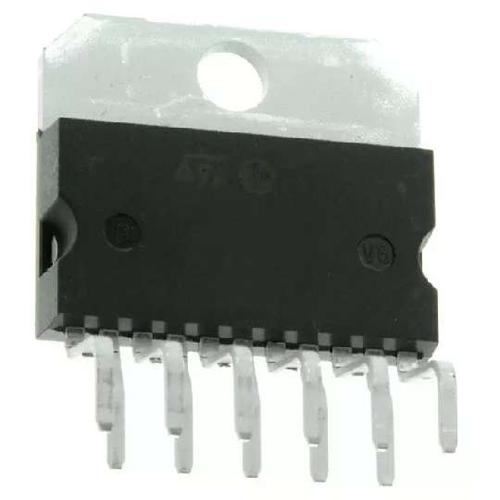

Image is for your reference only,please check specifications for details
- TDA7265B - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC10088283
-
Category:Audio Amplifier IC
-
Package:Multiwatt-11
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amplifiers 30W 30W Stereo AMP Class AB Dual 35V
-
Stock Locations:
-
Availability:207 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 16.8
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TDA7265B is class-AB dual audio power amplifier assembled in the Multiwatt package, especially designed for high-quality sound
- Features
- ■ Wide-range supply voltage (up to ± 35 V ABS max.)
- ■ Split supply
- ■ High output power
- ■ 30 W + 30 W at THD=10%, RL = 8 Ω, VS ± 23 V
- ■ 25 W + 25 W at THD=1%, RL = 8 Ω, VS ± 23 V
- ■ No “pop” at turn-on/off
- ■ Mute (“pop-free”)
- ■ Standby feature (low IQ)
- ■ Short-circuit protection
- ■ Thermal overload protection
TDA7265B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 11 Pin |
| Case/Package | Multiwatt-11 |
| Output Current | 4 A |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 11 Position |
| Power Dissipation | 40 W |
| Output Power | 30 W |
| Input Offset Voltage | 20 mV |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Power Dissipation (Max) | 40000 mW |
| Show | |
| Operating Temperature | -20℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
