Description
- DESCRIPTION
- The TEA2031A is intended to ensure frame rate modulated parabolic and keystone corrections to the horizontal deflection circuitry of 110° color TV sets.
- The linear frame saw-tooth is applied to appropriate circuitry from which a corresponding parabolic waveforms is obtained. This waveform is then fed to a comparator together with the linear line saw tooth for comparison. Comparator’s output drives the output power stage which is capable of sinking the external coil currents of up to 0.5A.
- FEATURES SUMMARY
- ■ BUILD IN FRAME PARABOLA FROM EXTERNAL SAW-TOOTH
- ■ PARABOLA CORRECTION ADJUSTMENT
- ■ KEYSTONE CORRECTION ADJUSTMENT
- ■ LINE SIZE ADJUSTMENT
- ■ LINE DYNAMIC CORRECTION POSSIBILITY (beam current)
- ■ D CLASS OUTPUT MODULATOR WITH BUILD IN RECOVERY DIODE
- ■ 50 OR 60Hz OPERATION
- ■ LOW DISSIPATION
- ■ FEW EXTERNAL COMPONENTS

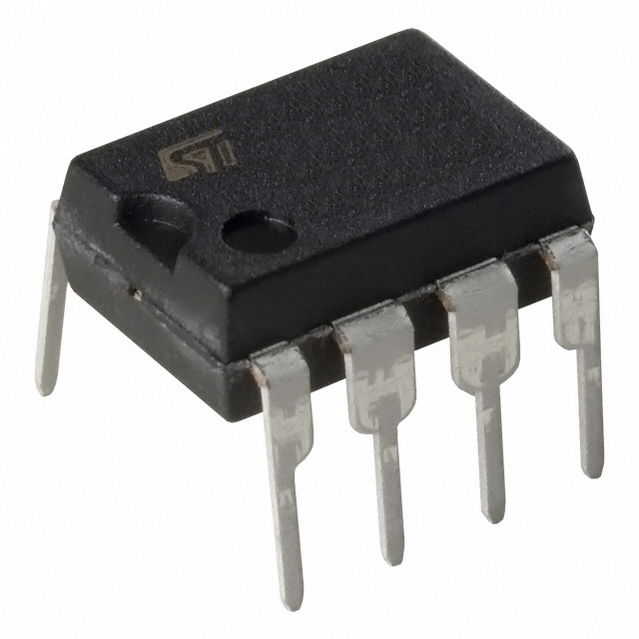

TEA2031A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | DIP-8 |
| Supply Voltage (DC) | 35.0 V |
| Supply Current | 6.00 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Show | |
| Size-Length | 10.92 mm |
| Size-Width | 6.6 mm |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
