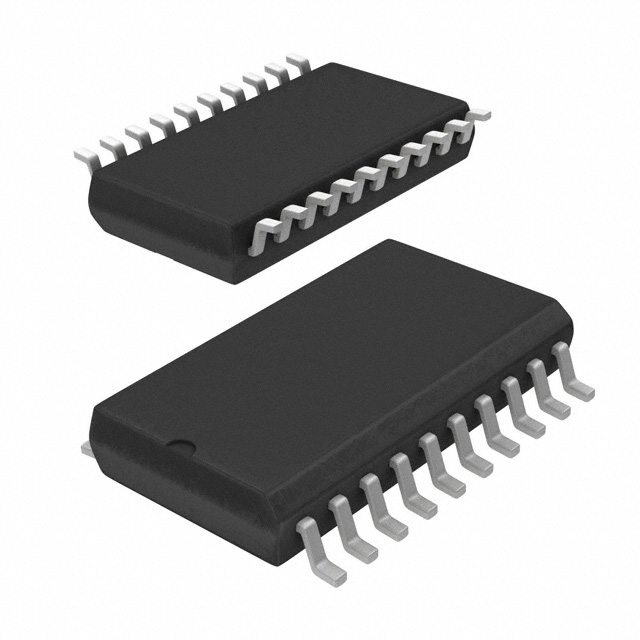

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TEA3718 and TEA3718S are bipolar monolithic integrated circuits intended to control and drive the current in one winding of a bipolar stepper motor. The circuits consist of an LS-TTL compatible logic input, a current sensor, a monostable and an output stage with built-in protection diodes. Two TEA3718 or TEA3718S and a few external components form a complete control and drive unit for LS-TTL or microprocessor-controlled stepper motor systems.
■ HALF-STEP AND FULL-STEP MODE
■ BIPOLAR DRIVE OF STEPPER MOTOR FOR MAXIMUM MOTOR PERFORMANCE
■ BUILT-IN PROTECTION DIODES
■ WIDE RANGE OF CURRENT CONTROL 5 TO 1500 mA
■ WIDE VOLTAGE RANGE 10 TO 50 V
■ DESIGNED FOR UNSTABILIZED MOTOR SUPPLY VOLTAGE
■ CURRENT LEVELS CAN BE SELECTED IN STEPS OR VARIED CONTINUOUSLY
■ THERMAL OVERLOAD PROTECTION
■ ALARM OUTPUT OR PRE-ALARM OUTPUT (see internal table)

Show

TEA3718SFP Specifications
