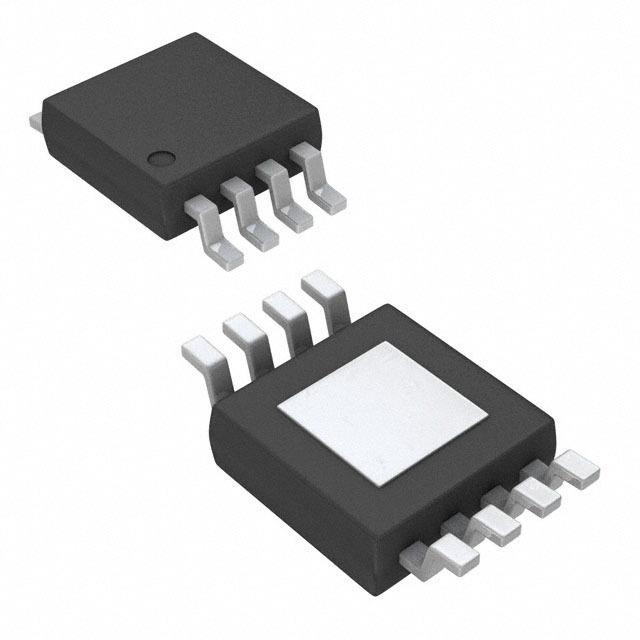

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Increase functionality to your control circuit with this current feedback amplifier THS3001CDGN OP amp from Texas Instruments. Its maximum power dissipation is 1710 mW. Its typical dual supply voltage is ±5|±9|±12|±15 V, with a minimum of ±4.5 V and maximum of ±16 V. This op amp has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device uses one or two power supplies. This device is made with bicom technology. It has a single channel per chip.
THS3001CDGN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PowerPad-MSOP-8 |
| Supply Current | 6.6 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 1.71 W |
| Common Mode Rejection Ratio | 62 dB |
| Input Offset Drift | 5.00 µV/K |
| Bandwidth | 420 MHz |
| Slew Rate | 6.50 kV/μs |
| Gain Bandwidth Product | 1750 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 2 µA |
| Available Channels | S |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| 3dB Bandwidth | 420 MHz |
| Gain Bandwidth | 1750 MHz |
| Power Dissipation (Max) | 1710 mW |
| Minimum CMRR Range | 62 dB |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
