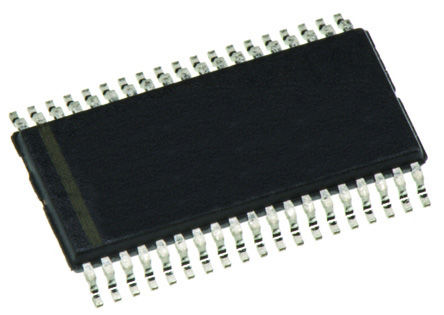

Image is for your reference only,please check specifications for details

THS4524IDBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC6247004
Category:
Operational Amplifier, OP Amp IC
Package:
TSSOP-38
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS THS4524IDBT Differential Amplifier, Low Power, 4 Amplifiers, 2mV, 145MHz, -40℃, 85℃
Stock Locations:
Availability:
313 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.69

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The THS4524IDBT is a very low-power fully Differential Amplifier with rail-to-rail output and an input common-mode range that includes the negative rail. This amplifier is designed for low-power data acquisition system and high-density applications where power dissipation is a critical parameter and provides exceptional performance in audio applications. The family includes quad FDA version. This fully differential amplifier features accurate output common-mode control that allows for DC-coupling when driving analog-to-digital converters (ADCs). This control, coupled with an input common-mode range below the negative rail as well as rail-to-rail output, allows for easy interfacing between single-ended, ground-referenced signal sources. Additionally, these devices are ideally suited for driving both successive-approximation register (SAR) and delta-sigma (ΔΣ) ADCs using only a single +2.5 to +5V and ground power supply.
Fully differential architecture
Negative rail input
Output common-mode control (with low offset)
102dB Typical CMRR
20µA (typical) Power-down capability
4.6nV/√Hz (f=100kHz) Input voltage noise
-112dBc (0.00025%) at 1kHz (22kHz BW, G=1, 5VPP) THD+N
Green product and no Sb/Br

Show

THS4524IDBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	38 Pin
Case/Package	TSSOP-38
Output Current	≤100 mA
Supply Current	1.14 mA
Number of Circuits	4 Circuit
Number of Channels	1 Channel
Number of Positions	38 Position
Common Mode Rejection Ratio	80 dB
Input Offset Drift	2.00 µV/K
Bandwidth	145 MHz
Slew Rate	490 V/μs
Gain Bandwidth Product	95 MHz
Input Offset Voltage	2 mV
Input Bias Current	700 nA
Available Channels	S, D
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	145 MHz
Gain Bandwidth	95 MHz
Minimum CMRR Range	80 dB
Supply Voltage	2.5V ~ 5.5V
	Show
Size-Length	9.8 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
