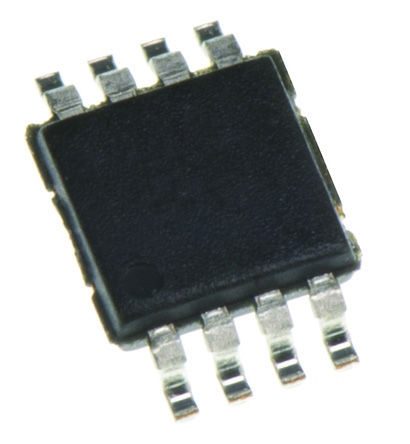

Image is for your reference only,please check specifications for details

THS4631DGN - TI
Manufacturer:
TI
ManyChip's Part#:
MC14941830
Category:
Operational Amplifier, OP Amp IC
Package:
PowerPad-MSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS THS4631DGN Operational Amplifier, Single, 1 Amplifier, 325MHz, 1kV/µs, 10V to 30V, MSOP, 8Pins
Stock Locations:
Availability:
209 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.71

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The THS4631DGN is a single high speed FET-input Operational Amplifier designed for applications requiring wideband operation, high-input impedance and high-power supply voltages. By providing a 210MHz gain bandwidth product, ±15V supply operation and 100pA input bias current. The THS4631 is capable of simultaneous wideband transimpedance gain and large output signal swing. The fast 1000V/µs slew rate allows for fast settling times and good harmonic distortion at high frequencies. Low current and voltage noise allow amplification of extremely low-level input signals while still maintaining a large signal-to-noise ratio. The characteristics of the THS4631 make it ideally suited for use as a wideband photodiode amplifier.
-76dB, SFDR at 5MHz Low distortion
7nV/√Hz Input voltage noise
500µV at 25°C Maximum input offset voltage
2.5µV/°C Low offset drift
95mA High output current
95dB Typical CMRR
Green product and no Sb/Br

Show

THS4631DGN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerPad-MSOP-8
Supply Current	11.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	2.14 W
Common Mode Rejection Ratio	86 dB
Input Offset Drift	2.50 µV/K
Bandwidth	325 MHz
Slew Rate	1.00 kV/μs
Gain Bandwidth Product	210 MHz
Input Offset Voltage	260 µV
Input Bias Current	50 pA
Available Channels	S
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	325 MHz
Gain Bandwidth	210 MHz
Power Dissipation (Max)	2140 mW
Minimum CMRR Range	86 dB
Supply Voltage	10V ~ 30V
	Show
Size-Length	3.1 mm
Size-Width	5.05 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
