TIL191 - ISOCOM Components
Manufacturer:
ISOCOM Components
ManyChip's Part#:
MC17738965
Category:
Optocoupler, Optoisolator
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:

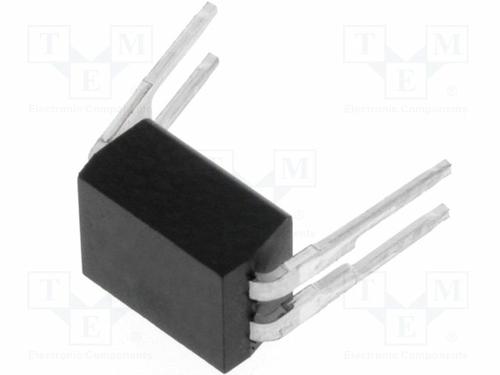

ISOCOM TIL191 Optocoupler, Transistor Output, 1Channel, DIP, 4Pins, 50mA, 5.3kV, 20%
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TIL191 is a 1-channel 4-pin high density mounting Optically Coupled Isolator consists of infrared light emitting diodes and NPN silicon phototransistors. It is tested for a CTR of 20% minimum. It is suitable for industrial systems controllers, signal transmission between systems of different potentials and impedances.
All electrical parameters 100% tested
50mA Forward current
6V Reverse voltage
200mW Total power dissipation

Show

TIL191 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP
Output Voltage	35.0 V
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.2 V
Input Current	20 mA
Rise Time	6 µs
Isolation Voltage	5.3 kV
Maximum Forward Voltage (Max)	1.4 V
Forward Current (Max)	50 mA
Fall Time	6 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
