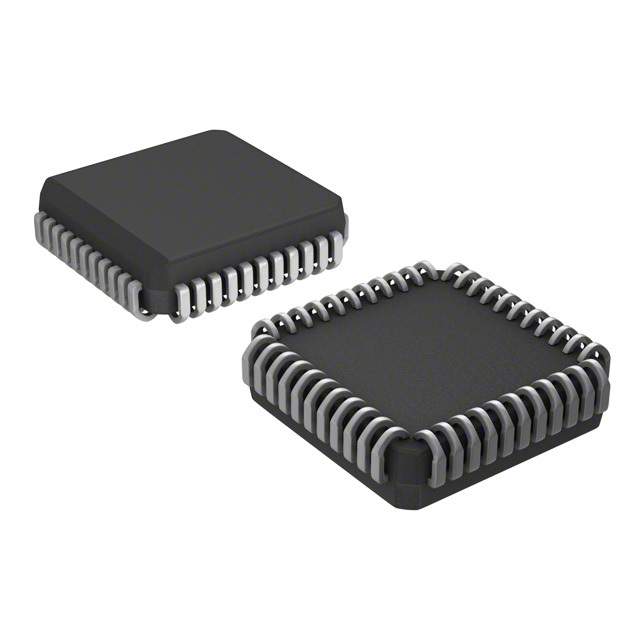

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TL16C750FN is an Asynchronous Communications Element (ACE) which in turn is a functional upgrade of the TL16C450. Can be placed in an alternate mode (FIFO mode). This relieves the CPU of excessive software overhead by buffering received and transmitted characters. The receiver and transmitter FIFOs store up to 64 bytes including three additional bits of error status per byte for the receiver FIFO. The user can choose between a 16-byte FIFO mode or an extended 64-byte FIFO mode. In the FIFO mode, there is a selectable auto-flow control feature that can significantly reduce software overload and increase system efficiency by automatically controlling serial data flow-through the RTS\ output and the CTS\ input signals. It performs serial-to-parallel conversion on data received from a peripheral device or modem and parallel-to-serial conversion on data received from its CPU. The CPU can read the ACE status at any time.
- Pin-to-Pin-compatible with the existing TL16C550B/C
- Programmable Auto-RTS\ and Auto-CTS\
- In Auto- CTS\ mode, CTS\ controls transmitter
- In Auto- RTS\ mode, receiver FIFO contents and threshold control RTS\
- Capable of running with all existing TL16C450 software
- Register selectable sleep mode and low-power mode
- Independent Receiver Clock Input
- Independently controlled transmit, receive, line status and data set interrupts
- False start bit detection
- Complete status reporting capabilities
- 3-state Output CMOS drive capabilities for bidirectional data bus and control bus
- Line break detection and generation
- Loopback controls for communications link fault isolation
- Break, parity, overrun and framing-error simulation
- Fully prioritized interrupt system controls
- Modem control functions ( CTS\, RTS\, DSR\, DTR\, RI\ and DCD\\)
- Green product and no Sb/Br
TL16C750FN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 44 Pin |
| Case/Package | PLCC-44 |
| Supply Voltage (DC) | 4.75V (min) |
| Voltage Rating (DC) | 5.00 V |
| Operating Voltage | 3.30V, 5.00V |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 44 Position |
| Data Rate | 1.00 Mbps |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 3.3V, 5V |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2017/07/07 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
