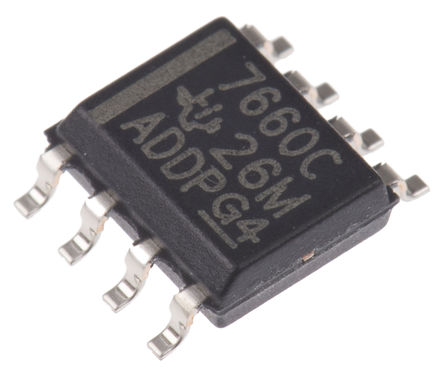

Image is for your reference only,please check specifications for details

TL7660CD - TI
Manufacturer:
TI
ManyChip's Part#:
MC18236800
Category:
DC to DC Converter
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Low PowerCMOS Voltage Converter Charge Pump INV/STPUP/STPDN -1.5V to -10V/3V to 20V 100mA 8Pin SOIC Tube
Stock Locations:
Availability:
222 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL7660CD is a CMOS Voltage Converter perform supply-voltage conversions from positive to negative. With only two noncritical external capacitors needed for the charge pump and charge reservoir functions, an input voltage within the range from 1.5 to 10V is converted to a complementary negative output voltage of -1.5 to -10V. The device can also be connected as a voltage doubler to generate output voltages up to 18.6V with a 10V input.
99.9% Typical open-circuit voltage conversion efficiency
98% Typical power efficiency
Green product and no Sb/Br

Show

TL7660CD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	10.0 kHz
Number of Outputs	1 Output
Output Voltage	-10.0 V (min)
Output Current	≤100 mA
Supply Current	0.11 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Quiescent Current	110 µA
Switching Frequency	10 kHz
Input Voltage (Max)	10 V
Input Voltage (Min)	1.5 V
Output Current (Max)	3 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.5V ~ 10V
Input Voltage	1.5V ~ 10V
	Show
Size-Length	5 mm
Size-Width	3.91 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
