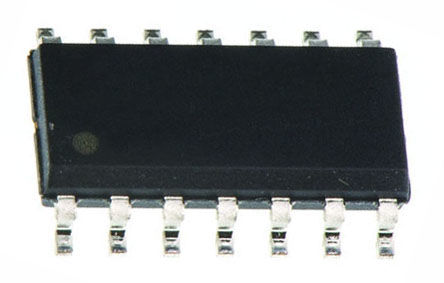

TLC074CD - TI
Manufacturer:
TI
ManyChip's Part#:
MC16529959
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLC074CD Operational Amplifier, Quad, 4 Amplifier, 10MHz, 16V/µs, ± 2.25V to ± 8V, SOIC, 14Pins
Stock Locations:
Availability:
111 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.55

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLC074CD is a quad wide-bandwidth high-output-drive Operational Amplifier. The first members of TI"s new BiMOS general-purpose operational amplifier family are the TLC07x. The BiMOS family concept is simple - provide an upgrade path for BiFET users who are moving away from dual-supply to single-supply systems and demand higher AC and DC performance. With performance rated from 4.5 to 16V across commercial (0 to 70°C). Familiar features like offset nulling pins and new features like MSOP PowerPAD. Developed in TI"s patented LBC3 BiCMOS process, the new BiMOS amplifier combine a very high input impedance low-noise CMOS front end with a high-drive bipolar output stage, thus providing the optimum performance features of both. AC performance improvements over the TL07x BiFET predecessors include a bandwidth of10 MHz (an increase of 300%) and voltage noise of 7nV/√Hz (an improvement of 60%).
1.9mA/channel Supply current
125µA/channel Ultralow power shutdown mode
7nV/√Hz Low input noise voltage
60µV Input offset voltage
Green product and no Sb/Br

Show

TLC074CD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	16.0 V
Operating Voltage	4.5V ~ 16V
Output Current	57mA @5V
Supply Current	2.1 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	1022 mW
Input Offset Drift	1.20 µV/K
Bandwidth	10 MHz
Slew Rate	16.0 V/μs
Gain Bandwidth Product	10 MHz
Input Offset Voltage	390 µV
Input Bias Current	1.5 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	10 MHz
Power Dissipation (Max)	1022 mW
Minimum CMRR Range	80 dB
	Show
Size-Length	8.65 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
