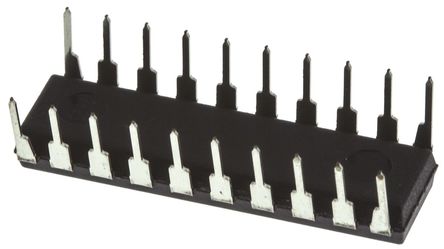

- TLC1543IN - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC31552940
-
Category:Analog to Digital, ADC IC
-
Package:PDIP-20
-
Datasheet:Datasheet 3D Model
-
Description:Analog to Digital Converter, 10Bit, 38KSPS, Single, 4.5V, 5.5V, DIP
-
Stock Locations:
-
Availability:178 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.24
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TLC1542C, TLC1542I, TLC1542M, TLC1542Q,TLC1543C, TLC1543I, and TLC1543Q are CMOS 10-bit switched-capacitor successive-approximation analog-to-digital converters.
- FEATURES
- • 10-Bit Resolution A/D Converter
- • 11 Analog Input Channels
- • Three Built-In Self-Test Modes
- • Inherent Sample-and-Hold Function
- • Total Unadjusted Error: ±1LSB Max
- • On-Chip System Clock
- • End-of-Conversion (EOC) Output
- • Terminal Compatible With TLC542
- • CMOS Technology
TLC1543IN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 20 Pin |
| Case/Package | PDIP-20 |
| Digital Logic Level | SAR |
| Supply Voltage (DC) | 4.50V (min) |
| Supply Current | 800 µA |
| Number of Circuits | 1 Circuit |
| Number of Positions | 20 Position |
| Number of Bits | 10 Bit |
| Sample Rate | 38 ksps |
| Power Consumption | 4.00 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 11 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Input Channels | 11 Channel |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Input Voltage | 5 V |
| Show | |
| Size-Length | 24.33 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
