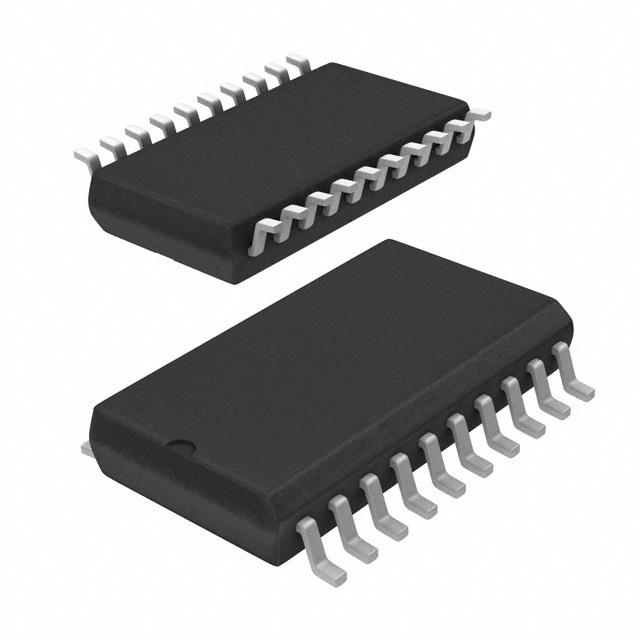

TLC2543CDWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC19283896
Category:
Analog to Digital, ADC IC
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLC2543CDWR Analog to Digital Converter, 12Bit, 66KSPS, Single, 4.5V, 5.5V, SOIC
Stock Locations:
Availability:
223 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 73.5

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This TLC2543CDWR made by Texas Instruments ADC is great for converting continuous analog signals into digital data. This device is based on SAR architecture. This device"s digital interface is serial (spi). It has a single-ended input signal. This ADC has a resolution of 12bit. This ADC has an input voltage of 5 V. This ADC has a temperature range of 0 °C to 70 °C.

Show

TLC2543CDWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Digital Logic Level	SAR
Supply Voltage (DC)	4.50V (min)
Supply Current	1.00 mA
Number of Circuits	1 Circuit
Number of Bits	12 Bit
Sample Rate	66 ksps
Power Consumption	5.00 mW
Number of ADCs	1 ADC
Number of Inputs	11 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Number of Input Channels	11 Channel
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
Input Voltage	5 V
	Show
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
