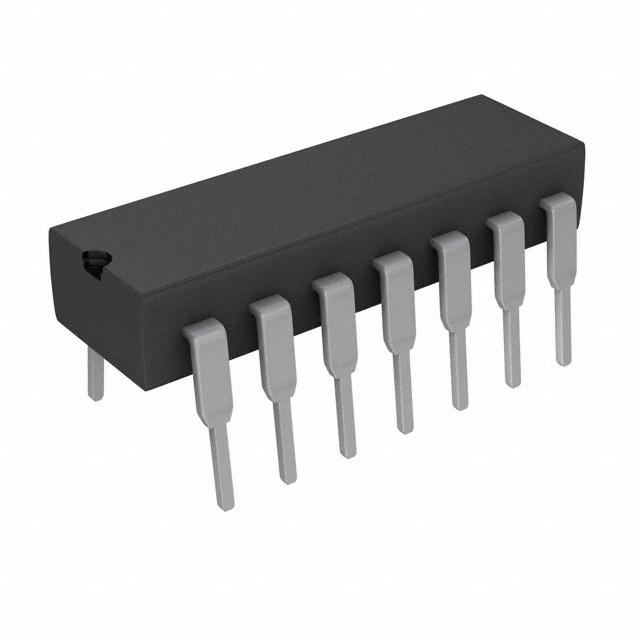

- TLC274ACN - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC13821545
-
Category:Operational Amplifier, OP Amp IC
-
Package:DIP-14
-
Datasheet:Datasheet 3D Model
-
Description:Standard Linear AmplifierLinCMOS(TM) Precision Quad Operational Amplifier OP Amp Quad GP 16V 14Pin PDIP Tube
-
Stock Locations:
-
Availability:272 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.73
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- description
- The TLC274 and TLC279 quad operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, low noise, and speeds approaching that of general-purpose BiFET devices.
- Trimmed Offset Voltage:
- TLC279. . . 900 µV Max at 25°C, VDD= 5 V
- Input Offset Voltage Drift...Typicall 0.1 µV/Month, Including the First 30 Days
- Wide Range of Supply Voltages Over Specified Temperature Range:
- 0°C to 70°C...3 V to 16 V
- −40°C to 85°C...4 V to 16 V
- −55°C to 125°C...4 V to 16 V
- Single-Supply Operation
- Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix and I-Suffix Versions)
- Low Noise...Typically 25 nV/√Hz at f = 1 kHz
- Output Voltage Range Includes Negative Rail
- High Input Impedance...1012ΩTyp
- ESD-Protection Circuitry
- Small-Outline Package Option Also Available in Tape and Reel
- Designed-In Latch-Up Immunity
TLC274ACN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | DIP-14 |
| Output Current | ≤30 mA |
| Supply Current | 3.8 mA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 14 Position |
| Power Dissipation | 1.575 W |
| Common Mode Rejection Ratio | 65 dB |
| Input Offset Drift | 1.80 µV/K |
| Bandwidth | 1.7 MHz |
| Slew Rate | 3.60 V/μs |
| Gain Bandwidth Product | 1.7 MHz |
| Input Offset Voltage | 900 µV |
| Input Bias Current | 0.7 pA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Gain Bandwidth | 2.2 MHz |
| Power Dissipation (Max) | 1575 mW |
| Minimum CMRR Range | 65 dB |
| Supply Voltage | 3V ~ 16V |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
