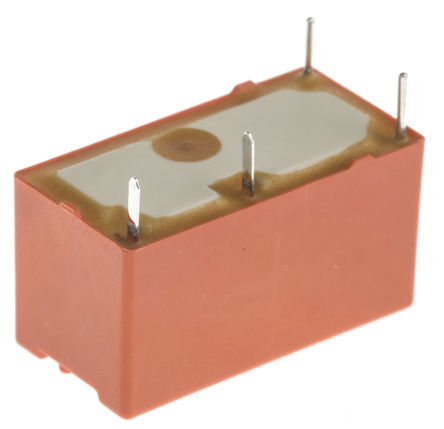

Image is for your reference only,please check specifications for details

Updated at 11/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RE series General Purpose PCB Relay with low power. It offers 1-pole 6A and 1-form-A (NO) contacts.
Wash tight
Sensitive coil 200mW
4kV Coil-contact
Optimized height 10.6mm
PCB area 200mm²

Show

RE034012 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	-
Voltage Rating (AC)	400 V
Current Rating	6 A
Contacts Type	SPST-NO
Contact Current Rating	6 A
Coil Voltage	12 VDC
Coil Current	16.67 mA
Coil Power (DC)	200 mW
Coil Resistance	720 Ω
Coil Voltage (DC)	12 V
Coil Power	200 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
	Show
Size-Length	20 mm
Size-Height	10.6 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
