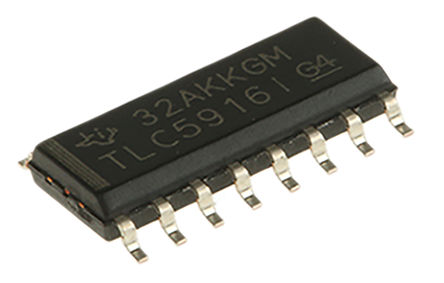

Image is for your reference only,please check specifications for details
- TLC5916ID - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8121600
-
Category:LED Driver, LED Display Driver
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TLC5916ID LED Driver, Constant Current, 3-5.5V input, 8Outputs, 30MHz switch-freq., 17V/120mA out, SOIC-16
-
Stock Locations:
-
Availability:160 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.14
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLC5916ID is a 8-channel Constant Current LED Sink Driver designed to work alone or cascaded. Since each output is independently controlled, they can be programmed to be on or off by the user. The high LED voltage (VLED) allows for the use of a single LED per output or multiple LEDs on a single string. With independently controlled outputs supplied with constant current, the LEDs can be combined in parallel to create higher currents on a single string. The constant sink current for all channels is set through a single external resistor. This allows different LED drivers in the same application to sink various currents which provides optional implementation of multi-colour LEDs. An additional advantage of the independent outputs is the ability to leave unused channels floating. The flexibility of the TLC5916 LED driver is ideal for applications such as 7-segment displays, scrolling single colour displays, gaming machines, white goods, video billboards and video panels.
- 8 Constant-current output channels
- Output current adjusted through single external resistor
- Constant output current range (3 to 120mA per channel)
- Constant output current invariant to load voltage change
- Open load, short load and over-temperature detection
- 256-step Programmable global current gain
- Excellent output current accuracy
- Fast response of output current
- 30MHz Clock frequency
- Schmitt-trigger input
- 20V Maximum LED voltage
- Thermal shutdown for over-temperature protection
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TLC5916ID Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Frequency | 30 MHz |
| Number of Outputs | 8 Output |
| Input Voltage (DC) | 3.00V ~ 5.50V |
| Output Voltage | 17 V |
| Output Current | 120 mA |
| Supply Current | 22000 mA |
| Number of Positions | 16 Position |
| Power Dissipation | 1500 W |
| Switching Frequency | 30 MHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 17 V |
| Output Current (Max) | 120 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1500 mW |
| Supply Voltage | 3V ~ 5.5V |
| Input Voltage | 3V ~ 5.5V |
| Show | |
| Size-Length | 9.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
